Scan 4000 is an ultra HD inhibition zone reader. It has been designed for the pharmaceutical industries, medical research and animal health. It reads 120 mm square dishes 120 mm and round dishes up to 150 mm. Scan 4000 also counts colonies on Petri dishes.
Inhibition zone measurement accuracy: ± 0.2 mm
Fast: up to 16 inhibition zones in 2 to 4 seconds
Protocols: wells, peni-cylinders, paper disks
Interpretation systems: EUCAST, CA-SFM, CLSI and customizable
Scan 4000 reads up to 16 antibiotics on a Petri dish in just 2-4 seconds.
The result is categorized SIR:
Green: susceptible
Yellow: intermediate
Red: resistant
Pills on Mueller Hinton before/after reading
Detection on all Petri dishes
Scan 4000 automatically detects the peni-cylinders, present or removed, made of steel or plastic. It also reads agar wells or paper disks (any brand). Add/remove disks manually.The inhibition zones can also be resized. Scan 4000 allows reading on blood, chocolate or Mueller Hinton agar. In its automatic colony counter mode, Scan 4000 counts colonies on round or square Petri dishes.
The Scan software complies with FDA recommendations, particularly on audit trail and security of results.
The user account management, integrated in the software, allows the creation of up to 5 levels of rights. The Supervisor-Administrator has all the roles while the other roles are subject to certain rights. Password management secures user accounts.
Scan 4000 connects to the LIMS in bi-directionality and can be connected to the diluter and plater via dataLink traceability system.
Traçabilité export donnés - Connexion SIL/LIMS
SIL/LIMS connection
Traçabilité export données - 21 CFR Part 11
Audit trail
Traçabilté export données - Sauvegarde et archivage des sessions
Backup and archive sessions
Traçabilité export données - PDF
PDF
Traçabilité export données - JPG
JPG, PNG, BMP
Traçabilité export données - Excel
ExcelTM OpenOfficeTM
Traçabilité export données - CSV
CSV
Scan 4000 offers multiple export possibilities to save manual input time. It also increases the security and quality of your analyses.
Usually, Petri dishes are thrown away after counting and no further verification is possible in the event of a claim. With Scan 4000, all reports are archived.
Export your results to your PC or archive them in CSV, ExcelTM, OpenOfficeTM, PDF, SCA, BIO format. You can also export images from the camera in JPEG, PNG and BMP format.
Printed results
All data, images, photos and results are exportable in printed reports, sca, pdf, jpg, xls, csv.

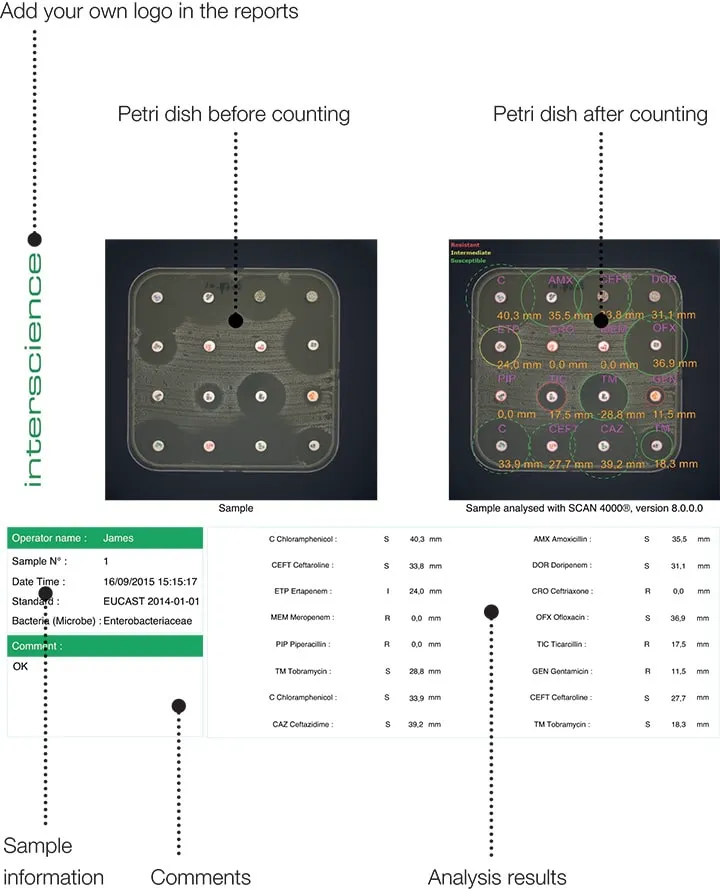

Scan 4000 ZI rapport imprimé EN
Printed report example
Integrated databases
The Scan software is equipped with a database of antibiotics from the French Society of Microbiology (CA-SFM 2020), the European Committee of Antibiograms (EUCAST 2020), the Clinical and Laboratory Standards Institute (CLSI). This database can be modified by the user.
Logo - SFM - Société Française de Microbiologie
Clinical and Laboratory Standards Institute - CLSI
Logo EUCAST
Warranty
Scan 4000 inhibition zone readers have 3-YEAR warranty (parts and labour) just by sending the warranty card back.
Garantie 3 ans
Applications
Scan 4000 makes it possible to check the effectiveness of an antibiotic on a microorganism by measuring the zone of inhibition. In addition, it adapts to perform titration and/or antibiotic dosage in the pharmaceutical industry. In the field of animal health, the Scan evaluates antimicrobial resistance with its SIR interpretation.
