DiluFlow

Gravimetric dilutor 3 kg

Tech must-have

Ref 501 103 (single pump)
Ref 501 203 (double pump)

DiluFlow

Gravimetric dilutor 3 kg

Tech must-have

Ref 501 103 (single pump)
Ref 501 203 (double pump)

The DiluFlow automatically dilutes a solid sample in seconds, with the appropriate weight of diluent, and all traceability is guaranteed.

225 mL in 10 s
Dilution factor: 1/2 to 1/99
Dilution accuracy: > 99%*
Max weight: 3000 g

* in Standard or Accurate mode (in optimal conditions)

Price request

Presentation

**DiluFlow - Simplicity and efficiency**

User-friendly and efficient

With the press of only 2 keys, the DiluFlow gravimetric dilutor provides an accurate dilution of all types of samples from 5 to 300 g (at 1/10^th). In compliance with ISO 7218 and ISO 6887.

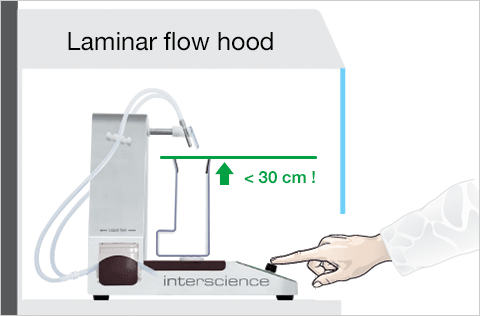

Ultra-low profile

Widest possible opening for the bag and lowest loading threshold on the market! With redesigned ergonomics, the ultra-low profile allows optimal comfort of use, especially under a laminar flow hood.

Removable drip tray

In case of splashing, the drain tray is removable for rinsing and avoids tedious cleaning.
PATENTED

GeckoGrip holding system

This patented system replaces the adhesive putty and keeps the analysis bag glue-free, even on a wet surface.
PATENTED

Traceability of results

DiluFlow exports the analysis data to the printer and to the supervision software (Export data to Excel^TM, Open Office^TM, CSV file, printer).

**DiluFlow - traceability of the results**

LightCode

LightCode is a bright and intuitive indicator of the status of dilution. It allows you to check the accuracy at a glance.

Green
Accuracy > 98%

Orange
Accuracy > 95%

Red
Accuracy < 95%

Blue
Scale stabilizing

Magnetic BagOpen

The shape of the bag rack allows easy and ergonomic insertion of the bag. Its attachment by 2 magnetic points ensures a better distribution of the weight of the sample and contributes to the stability of the weighing platform.
PATENTED SHAPE

New

Pure water, instantly, with Steriwater

Steriwater is an instant solution for the production of sterile water in the laboratory. This solution simplifies sample dilution with sterile water using a DiluFlow gravimetric dilutor and instaBAG dehydrated media bags. Set-up is quick and easy.

<div class="spip_document_2857 spip_document spip_documents spip_document_video ressource oembed oembed_video oembed_video oembed_vimeo"

onclick="if (jQuery(this).is('.oe-play-button')){jQuery(this).removeClass('oe-play-button').addClass('loading').html(decodeURIComponent('%3Ciframe%20src%3D%22https%3A%2F%2Fplayer.vimeo.com%2Fvideo%2F809798503%3Fdnt%3D1%26app_id%3D122963%26autoplay%3D1%22%20width%3D%22600%22%20height%3D%22338%22%20frameborder%3D%220%22%20allow%3D%22autoplay%3B%20fullscreen%3B%20picture-in-picture%3B%20clipboard-write%3B%20encrypted-media%3B%20web-share%22%20referrerpolicy%3D%22strict-origin-when-cross-origin%22%20title%3D%22Steriwater%20-%20Solution%20instantan%C3%A9e%20de%20st%C3%A9rilisation%20d%26%23039%3Beau%20%3A%20Pr%C3%A9sentation%20%28version%20courte%29%22%3E%3C%2Fiframe%3E'));}"
>

Steriwater - Solution instantanée de stérilisation d’eau : Présentation (version courte)

Interscience

Applications

The DiluFlow gravimetric dilutor is used for sample preparation for microbiological analysis. It allows for a 25 g sample to be diluted to 1/10th in peptone water for the research of quality indicators or for enrichment in the detection of pathogens.

Resources

Title

Language

Type

Size

Download



PDF

6.7 MiB

Language: English

DiluFlow range brochure



PDF

993.6 KiB

Language: English

Tubings guide



PDF

748.8 KiB

Language: English

DiluFlow 3 kg Technical file



PDF

199.7 KiB

Language: English

EC Certificate Gravimetric dilutors and Dispensing pumps



PDF

161.3 KiB

Language: English

UKCA Certificate Gravimetric dilutors and Dispensing pumps



PDF

557.3 KiB

Language: English, french

ISO 9001 Certificate



PDF

46.9 MiB

Language: English

English catalog

Zip

1.2 MiB

DiluFlow range photo

Zip

817.4 KiB

DiluFlow photo

Title

Language

Type

Size

Download

Title

Language

Type

Size

Download



PDF

535.3 KiB

Language: English

Publication: 2023

Antibiotic Susceptibility of β-Glucuronidase-Positive Escherichia coli Isolated from Poultry Products in Morocco



PDF

1.7 MiB

Language: English

Publication: 2023

Manufacture of syringes and capsules for faecal microbiota transplantation (FMT) with Interscience equipments

Title

Language

Type

Size

Download

Title

Language

Type

Size

Download

Title

Language

Type

Size

Download

Zip

322.6 KiB

410 130 - Film for printer photo

Zip

725.8 KiB

410 150 - Printer photo

Zip

1.9 MiB

413 002 - 2L bottle (GL45) photo

Zip

1 MiB

505 001 - BagOpen 400 for dilutors photo

Zip

503.1 KiB

505 002 - Weighing platform photo

Zip

608.6 KiB

505 003 - Tongs platform photo

Zip

227.2 KiB

505 004 - Adjustable distribution system photo

Zip

435.4 KiB

505 009 - GeckoGrip for BagOpen 400/3500 photo

Zip

1.1 MiB

505 010 - Integrable stand for broth bags photo

Zip

1.2 MiB

505 014 - BagOpen 80-100 mL for dilutors photo

Zip

272.4 KiB

505 015 - GeckoGrip for BagOpen 80-100 photo

Zip

1.4 MiB

505 016 - BagOpen 400 for dilutors (stainless steel) photo

Zip

1.8 MiB

507 008 - Foot pedal photo

Zip

977 KiB

511 000 - Booster kit photo

Zip

292.8 KiB

513 001 - 5L bottle (GL45) photo

Zip

171.2 KiB

513 005 - Certified standard weight (500 g) photo

Zip

862.1 KiB

513 015 - Independent stand for 2 broth bags photo

Zip

1009.4 KiB

513 053 - Holder for Steriwater dispensing assembly set photo

Zip

295 KiB

521 012 - Sticker for printer photo

Zip

2 MiB

521 110 - Paper for print photo

Title

Language

Type

Size

Download

Zip

285.3 KiB

505 012 - Adjustable nozzles (L 23.5 cm - tubings Ø 3.2 mm) photo

Zip

258.2 KiB

505 013 - Adjustable nozzles (L 12 cm - tubings Ø 6.4 mm) photo

Zip

202.3 KiB

505 017 - Nozzle cap for trocar photo

Zip

331.1 KiB

513 008 - Booster kit dispensing assembly (GL45 - Ø 3.2 mm) photo

Zip

191.5 KiB

513 009 - Tubings + Y (Ø 3.2 mm) photo

Zip

215.6 KiB

513 011 - Tubings for pump (Ø 4.8 mm) photo

Zip

285.9 KiB

513 016 - Dispensing assembly for broth bags (Ø 4.8 mm) photo

Zip

1.4 MiB

513 020 - Trocar for broth bags photo

Zip

745.4 KiB

513 023 - PTFE filters 0.2 µL Ø 25 mm photo

Zip

253.1 KiB

513 024 - Nozzle for tubings 4.8 to 8 mm photo

Zip

184.8 KiB

513 039 - Tube weights ø 6 mm photo

Zip

246 KiB

513 040 - Nozzles tubings (Ø 1.6 - 3.2 mm) photo

Zip

366.8 KiB

513 041 - Booster kit dispensing assembly (GL45 - Ø 6.4 mm) photo

Zip

109.5 KiB

513 045 - Dispensing assembly (GL45 - Ø 3.2 mm) photo

Zip

320.6 KiB

513 043 - Dispensing assembly (GL45 - Ø 6.4 mm) photo

Zip

249.4 KiB

513 044 - Tubings (Ø 6.4 mm) photo

Zip

293.2 KiB

513 042 - Tubings + Y (Ø 6.4 mm) photo

Zip

183.8 KiB

513 047 - Tubings (Ø 3.2 mm) photo

Zip

627.9 KiB

513 048 - Nozzle cap (Ø 1.6 - 3.2 mm) photo

Zip

246 KiB

513 050 - Dispensing assembly with 0.2 µm filter (GL45 - Ø 6.4 mm) photo

Zip

377.6 KiB

513 051 - Dispensing assembly + Y with 0.2 µm filter (GL45 - Ø 6.4 mm) photo

Zip

793.8 KiB

513 052 - Tubings for pump with filter 0.2 µm (Ø 6.4 mm) photo

Zip

196.5 KiB

561 302 - Tubings for pump (Ø 3.2 mm) photo

Zip

195.2 KiB

561 304 - Tubings for pump (Ø 6.4 mm) photo

Zip

388.1 KiB

561 401 - Autoclavable GL45 stopper + 0.2 µm filter photo

Zip

252.8 KiB

561 403 - Straight connectors (tubings Ø 3.2 - 4.8 mm) photo

Zip

198.9 KiB

561 404 - Straight connectors (tubings Ø 3.2 - 4.8 mm) photo

Zip

194.8 KiB

562 401 - Y connectors (tubings Ø 6.4 - 8 mm) photo

Zip

7.3 MiB

562 402 - Y connectors (tubings Ø 3.2 mm) photo

Specifications

DiluFlow 3 kg (single pump)

Reference	501 103
OVERVIEW
304L stainless steel body	N
BagOpen height < 30 cm	N
Removable drip tray (Patented)	N
BagOpen with GeckoGrip system (Patented)	N
Magnetic stand for BagOpen (Patented shape)	N
LightCode: color status LED	N
Compatible with Booster Kit	N
Stainless casting electromechanical core	N
SPECIFICATIONS
Resolution up to 200 g	0.01 g
Weighing range	0.1 to 3000 g
Max weight without support	4500 g
Weighing accuracy	0 g to 100 g : ± 0.05 g / 100 g to 3000 g : ± 0.1%
Dilution factor	1/2 to 1/99
Minimum weight required for dilution	5 g
Minimum weight required for distribution	5 g
Dilution/distribution accuracy	> 99% in Standard or Accurate mode (in optimal conditions)
Dilution time for a 25g sample diluted to 1/10	< 9 s (with Booster Kit in Fast mode)
Distribution time for 90 mL	< 7 s (with Booster Kit in Fast mode)
Distribution time for 225 mL	< 10 s (with Booster Kit in Fast mode)
Max number of pumps	2 integrated
Dilution/distribution mode	Fast / Standard / Accurate
Language	English
Voltage - Frequencies	100-240 V~ 50/60 Hz
Fuses	T 3.15A L 250 V 5x20 mm
Power max.	60 W
Warranty	1 year
International protection marking	IP22
Spare parts availability	10 years
In compliance with	ISO 7218 - ISO 6887
TRACEABILITY
Traceability	Printer / Supervision software (export to Excel^TM / OpenOffice^TM, CSV file, printer)
Exported data	Sample weight / Total weight / Dilution factor / Dilution accuracy / Right or left pump + with supervision software: Sample number / Name of operator / Date / Time
Connection	RS232 output for printer / USB port for computer / Jack output for foot pedal connection
WEIGHT AND DIMENSIONS
Dimensions (w x d x h): DiluFlow	31.3 x 43.7 x 39.4 cm
Dimensions (w x d x h): DiluFlow + Booster Kit (Ref. 511 000)	36.8 x 43.7 x 39.4 cm (1 Booster Kit)
Dimensions (w x d x h): DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010)	47.1 x 44.5 x 54.1 cm
Net weight: DiluFlow	10.10 kg
Net weight: DiluFlow + Booster Kit (Ref. 511 000)	10.40 kg (1 Booster Kit)
Net weight: DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010)	11.20 kg
Box (w x d x h): DiluFlow	55 x 55 x 40.5 cm
Gross weight: DiluFlow	16.10 kg
Gross weight: DiluFlow + Booster Kit (Ref. 511 000)	16.40 kg (1 Booster Kit)
Gross weight: DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010)	18.10 kg
DELIVERED WITH
	1 distribution arm, 1 drip tray 400, 1 or 2 pumps, 1 dispensing assembly (GL45 - Ø 6.4 mm) per pump, 1 USB cable , 1 supervision software, 1 power cord, 1 BagOpen 400 for dilutors, 1 user manual, 1 set of 10 GeckoGrip, 1 set of adhesive gum, blender bags samples, 1 conformity certificate / warranty card.

DiluFlow 3 kg (double pump)

Reference	501 203
OVERVIEW
304L stainless steel body	N
BagOpen height < 30 cm	N
Removable drip tray (Patented)	N
BagOpen with GeckoGrip system (Patented)	N
Magnetic stand for BagOpen (Patented shape)	N
LightCode: color status LED	N
Compatible with Booster Kit	N
Stainless casting electromechanical core	N
SPECIFICATIONS
Resolution up to 200 g	0.01 g
Weighing range	0.1 to 3000 g
Max weight without support	4500 g
Weighing accuracy	0 g to 100 g : ± 0.05 g / 100 g to 3000 g : ± 0.1%
Dilution factor	1/2 to 1/99
Minimum weight required for dilution	5 g
Minimum weight required for distribution	5 g
Dilution/distribution accuracy	> 99% in Standard or Accurate mode (in optimal conditions)
Dilution time for a 25g sample diluted to 1/10	< 9 s (with Booster Kit in Fast mode)
Distribution time for 90 mL	< 7 s (with booster kit in Fast mode)
Distribution time for 225 mL	< 10 s (with booster kit in Fast mode)
Max number of pumps	2 integrated
Dilution/distribution mode	Fast / Standard / Accurate
Language	English
Voltage - Frequencies	100-240 V~ 50/60 Hz
Fuses	T 3.15A L 250 V 5x20 mm
Power max.	60 W
Warranty	1 year
International protection marking	IP22
Spare parts availability	10 years
In compliance with	ISO 7218 - ISO 6887
TRACEABILITY
Traceability	Printer / Supervision software (export to Excel^TM / OpenOffice^TM, CSV file, printer)
Exported data	Sample weight / Total weight / Dilution factor / Dilution accuracy / Right or left pump + with supervision software: Sample number / Name of operator / Date / Time
Connection	RS232 output for printer / USB port for computer / Jack output for foot pedal connection
WEIGHT AND DIMENSIONS
Dimensions (w x d x h): DiluFlow	37 x 43.7 x 39.4 cm
Dimensions (w x d x h): DiluFlow + Booster Kit (Ref. 511 000)	48.7 x 43.7 x 39.4 cm (2 Booster Kits)
Dimensions (w x d x h): DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010)	47.1 x 44.5 x 54.1 cm
Net weight: DiluFlow	12.50 kg
Net weight: DiluFlow + Booster Kit (Ref. 511 000)	13.10 kg (2 Booster Kits)
Net weight: DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010)	13.60 kg
Box (w x d x h): DiluFlow	55 x 55 x 40.5 cm
Gross weight: DiluFlow	18.60 kg
Gross weight: DiluFlow + Booster Kit (Ref. 511 000)	18.90 kg (2 Booster Kits)
Gross weight: DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010)	20.60 kg
DELIVERED WITH
	1 distribution arm, 1 drip tray 400, 1 or 2 pumps, 1 dispensing assembly (GL45 - Ø 6.4 mm) per pump, 1 USB cable , 1 supervision software, 1 power cord, 1 BagOpen 400 for dilutors, 1 user manual, 1 set of 10 GeckoGrip, 1 set of adhesive gum, blender bags samples, 1 conformity certificate / warranty card.

	DiluFlow 3 kg (single pump)	DiluFlow 3 kg (double pump)
Reference	501 103	501 203
OVERVIEW
304L stainless steel body	N	N
BagOpen height < 30 cm	N	N
Removable drip tray (Patented)	N	N
BagOpen with GeckoGrip system (Patented)	N	N
Magnetic stand for BagOpen (Patented shape)	N	N
LightCode: color status LED	N	N
Compatible with Booster Kit	N	N
Stainless casting electromechanical core	N	N
SPECIFICATIONS
Resolution up to 200 g	0.01 g
Weighing range	0.1 to 3000 g
Max weight without support	4500 g
Weighing accuracy	0 g to 100 g : ± 0.05 g / 100 g to 3000 g : ± 0.1%
Dilution factor	1/2 to 1/99
Minimum weight required for dilution	5 g
Minimum weight required for distribution	5 g
Dilution/distribution accuracy	> 99% in Standard or Accurate mode (in optimal conditions)
Dilution time for a 25g sample diluted to 1/10	< 9 s (with Booster Kit in Fast mode)
Distribution time for 90 mL	< 7 s (with Booster Kit in Fast mode)
Distribution time for 225 mL	< 10 s (with Booster Kit in Fast mode)
Max number of pumps	2 integrated
Dilution/distribution mode	Fast / Standard / Accurate
Language	English
Voltage - Frequencies	100-240 V~ 50/60 Hz
Fuses	T 3.15A L 250 V 5x20 mm
Power max.	60 W
Warranty	1 year
International protection marking	IP22
Spare parts availability	10 years
In compliance with	ISO 7218 - ISO 6887
TRACEABILITY
Traceability	Printer / Supervision software (export to Excel^TM / OpenOffice^TM, CSV file, printer)
Exported data	Sample weight / Total weight / Dilution factor / Dilution accuracy / Right or left pump + with supervision software: Sample number / Name of operator / Date / Time
Connection	RS232 output for printer / USB port for computer / Jack output for foot pedal connection
WEIGHT AND DIMENSIONS
Dimensions (w x d x h): DiluFlow	31.3 x 43.7 x 39.4 cm	37 x 43.7 x 39.4 cm
Dimensions (w x d x h): DiluFlow + Booster Kit (Ref. 511 000)	36.8 x 43.7 x 39.4 cm (1 Booster Kit)	48.7 x 43.7 x 39.4 cm (2 Booster Kits)
Dimensions (w x d x h): DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010)	47.1 x 44.5 x 54.1 cm	47.1 x 44.5 x 54.1 cm
Net weight: DiluFlow	10.10 kg	12.50 kg
Net weight: DiluFlow + Booster Kit (Ref. 511 000)	10.40 kg (1 Booster Kit)	13.10 kg (2 Booster Kits)
Net weight: DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010)	11.20 kg	13.60 kg
Box (w x d x h): DiluFlow	55 x 55 x 40.5 cm	55 x 55 x 40.5 cm
Gross weight: DiluFlow	16.10 kg	18.60 kg
Gross weight: DiluFlow + Booster Kit (Ref. 511 000)	16.40 kg (1 Booster Kit)	18.90 kg (2 Booster Kits)
Gross weight: DiluFlow + 2 Integrable stand for broth bags (Ref. 505 010)	18.10 kg	20.60 kg
DELIVERED WITH
	1 distribution arm, 1 drip tray 400, 1 or 2 pumps, 1 dispensing assembly (GL45 - Ø 6.4 mm) per pump, 1 USB cable , 1 supervision software, 1 power cord, 1 BagOpen 400 for dilutors, 1 user manual, 1 set of 10 GeckoGrip, 1 set of adhesive gum, blender bags samples, 1 conformity certificate / warranty card.	1 distribution arm, 1 drip tray 400, 1 or 2 pumps, 1 dispensing assembly (GL45 - Ø 6.4 mm) per pump, 1 USB cable , 1 supervision software, 1 power cord, 1 BagOpen 400 for dilutors, 1 user manual, 1 set of 10 GeckoGrip, 1 set of adhesive gum, blender bags samples, 1 conformity certificate / warranty card.

GLP-Compliant use (Good Laboratory Practice)

Products made for Interscience by Interlab, an ISO 9001 certified company.

Accessories

Film for printer

Ref. 410 130

Printer

Ref. 410 150

2L bottle (GL45)

Ref. 413 002

BagOpen 400 for dilutors

Ref. 505 001

Weighing platform

Ref. 505 002

Tongs platform

Ref. 505 003

Adjustable distribution system

Ref. 505 004

GeckoGrip for BagOpen 400/3500

Ref. 505 009

Integrable stand for broth bags

Ref. 505 010

BagOpen 80/100 mL for dilutors

Ref. 505 014

GeckoGrip for BagOpen 80/100

Ref. 505 015

BagOpen 400 for dilutors (stainless steel)

Ref. 505 016

Foot pedal

Ref. 507 008

Booster kit

Ref. 511 000

5L bottle (GL45)

Ref. 513 001

Certified standard weight (500 g)

Ref. 513 005

Independent stand for broth bags

Ref. 513 015

Holder for Steriwater dispensing assembly set

Ref. 513 053

Sticker for printer

Ref. 521 012

Paper for printer

Ref. 521 110

Film for printer

Ref. 410 130

Thermal transfer film for printer

Box dimensions: 12x10x8 cm
Gross weight: 0.08 kg
Quantity: 1

Printer

Ref. 410 150

Thermal printer (RS 232 and USB output). Delivered with 1 thermal transfer film + power cable + USB cable

Box dimensions: 37x35x25 cm
Gross weight: 3.50 kg
Quantity: 1

2L bottle (GL45)

Ref. 413 002

Set of 3 GL45 glass bottle (2L), autoclavable

Box: 37x37x37 cm
Gross weight: 4.10 kg
Quantity: 3

BagOpen 400 for dilutors

Ref. 505 001

Stand for 400 mL bags - Compatible with gravimetric dilutors range

Box: 22x25x12 cm
Gross weight: 0,50 kg
Quantity: 1

Weighing platform

Ref. 505 002

To weigh and support a container. Not delivered with container. Compatible with gravimetric dilutors range

Box: 25x15x10 cm
Gross weight: 0.25 kg
Quantity: 1

Tongs platform

Ref. 505 003

To hold a tube (Ø 10 to 60 mm). Not delivered with tube. Compatible with gravimetric dilutors range.

Box: 25x15x10 cm
Gross weight: 1.00 kg
Quantity: 1

Adjustable distribution system

Ref. 505 004

Ideal to fill various containers - Compatible with DiluFlow

Box: 35x30x20 cm
Gross weight: 0.60 kg
Quantity: 1

GeckoGrip for BagOpen 400/3500

Ref. 505 009

Set of 10 adhesives to hold the bag in place - Compatible with BagOpen 400 and 3500.

Box: 12x10x8 cm
Gross weight: 0.03 kg
Quantity: 10

Integrable stand for broth bags

Ref. 505 010

Integrated to the unit, to hold one broth bag. Delivered with 4 screws + Torx screwdriver. Compatible with gravimetric dilutors range.

Box: 40x30x18 cm
Gross weight: 0.70 kg
Quantity: 1

BagOpen 80/100 mL for dilutors

Ref. 505 014

Stand for 80/100 mL bags. Compatible with gravimetric dilutors range.

Box: 22x22x10 cm
Gross weight: 0.50 kg
Quantity: 1

GeckoGrip for BagOpen 80/100

Ref. 505 015

Set of 10 adhesives to hold the bag in place - Compatible with BagOpen 80/100

Box: 8x7 cm
Gross weight: 0.02 kg
Quantity: 10

BagOpen 400 for dilutors (stainless steel)

Ref. 505 016

Stainless steel stand for 400 mL bags - Compatible with gravimetric dilutors range

Box: 24x20x12 cm
Gross weight: 0.61kg
Quantity: 1

Foot pedal

Ref. 507 008

For hands-free dispensing. Connection with a 3.5 mm Jack

Box: 15x10x10 cm
Gross weight: 0.15 kg
Quantity: 1

Booster kit

Ref. 511 000

Booster pump + 2 silicone tubings for pump part (20 cm each), inner ø 6.4 mm + 2 “Y”

Box: 39x17x15 cm
Gross weight: 0.38 kg
Quantity: 1

5L bottle (GL45)

Ref. 513 001

GL45 glass bottle (5L), autoclavable

Box: 37x35x25 cm
Gross weight: 1.70 kg
Quantity: 1

Certified standard weight (500 g)

Ref. 513 005

500 g COFRAC calibrated weight, type F1

Box: 25x10x10 cm
Gross weight: 0.80 kg
Quantity: 1

Independent stand for broth bags

Ref. 513 015

Independent stand for 2 broth bags

Box: 59x37x29 cm
Gross weight: 1.90 kg
Quantity: 1

Holder for Steriwater dispensing assembly set

Ref. 513 053

1 holder for dispensing assembly with 0.2 µm filter + 1 knurled head screw - Compatible with Steriwater filtration system.

Box dimensions: 13x11.5x8.5 cm
Gross weight: 0.105 kg
Quantity: 1

Sticker for printer

Ref. 521 012

Set of 2 rolls of 1000 stickers for thermal printer - Label size: 70 x 45 mm

Box dimensions: 20x10x10 cm
Gross weight: 1.00 kg
Quantity: 2x1000

Paper for printer

Ref. 521 110

Set of 2 thermal paper rolls for printer

Box dimensions: 25x10x10 cm
Gross weight: 1.50 kg
Quantity: 2

Tubings

A dispensing assembly

B dispensing assembly for Booster Kit

**Dispensing assembly for Booster Kit / FlexiPump Pro**

C Tube weights
D Trocar
E PTFE filter
F Autoclavable GL45 stopper

G Silicone tubings
H Straight connectors
I Y connectors
J Tygon^TM tubings for pump

K Tygon^TM tubings for pump with filter 0.2 µm
L Nozzles
M Protection cap

TUBINGS GUIDE

Adjustable nozzles
(L 23.5 cm - tubings Ø 3.2 mm)

Ref. 505 012

Adjustable nozzles (L 12 cm - tubings Ø 6.4 mm)

Ref. 505 013

Nozzle cap for trocar

Ref. 505 017

Booster kit dispensing assembly
(GL45 - Ø 3.2 mm)

Ref. 513 008

G + J + I

Tubings + Y
(Ø 3.2 mm)

Ref. 513 009

Tubings for pump (Ø 4.8 mm)

Ref. 513 011

G + H + J + L + M

Dispensing assembly for broth bags (Ø 4.8 mm)

Ref. 513 016

Trocar

Ref. 513 020

PTFE filters 0.2 µm
(Ø 25 mm)

Ref. 513 023

L + M

Nozzles
(tubings Ø 4.8 - 8 mm)

Ref. 513 024

Tube weights
(Ø 6 mm)

Ref. 513 039

L + M

Nozzles (tubings Ø 1.6 - 3.2 mm)

Ref. 513 040

Booster kit dispensing assembly (GL45 - Ø 6.4 mm)

Ref. 513 041

G + J + I

Tubings + Y
(Ø 6.4 mm)

Ref. 513 042

Dispensing assembly
(GL45 - Ø 6.4 mm)

Ref. 513 043

G + J + H

Tubings
(Ø 6.4 mm)

Ref. 513 044

Ensemble de distribution
(GL45 - Ø 3,2 mm)

Ref. 513 045

G + J + H

Tubings
(Ø 3.2 mm)

Ref. 513 047

Cap
(Ø 1.6 - 3.2 mm)

Ref. 513 048

Dispensing assembly with 0.2 µm filter (GL45 - Ø 6.4 mm)

Ref. 513 050

Dispensing assembly + Y with 0.2 µm filter (GL45 - Ø 6.4 mm)

Ref. 513 051

Tubings for pump Steriwater (Ø 6.4 mm)

Ref. 513 052

Tubings for pump
(Ø 3.2 mm)

Ref. 561 302

Tubings for pump
(Ø 6.4 mm)

Ref. 561 304

E + F

Autoclavable GL45 stopper + 0.2 µm filter

Ref. 561 401

Straight connectors (tubings Ø 6.4 - 8 mm)

Ref. 561 403

Straight connectors (tubings Ø 3.2 - 4.8 mm)

Ref. 561 404

Y connectors
(tubings Ø 6.4 - 8 mm)

Ref. 562 401

Y connectors
(tubings Ø 3.2 mm)

Ref. 562 402

Y connectors
(tubings Ø 4.8 mm)

Ref. 562 403

Adjustable nozzles
(L 23.5 cm - tubings Ø 3.2 mm)

Ref. 505 012

Set of 5 adjustable PEEK nozzles (Length: 23.5 cm - For inner Ø 3.2 mm tubings)

Box dimensions: 27x42 cm
Gross weight: 0.35 kg
Quantity: 5

Adjustable nozzles (L 12 cm - tubings Ø 6.4 mm)

Ref. 505 013

Set of 5 adjustable PEEK nozzles (Length: 12 cm - For inner Ø 6.4 mm tubings)

Box: 14x8 cm
Gross weight: 0.15 kg
Quantity: 5

Nozzle cap for trocar

Ref. 505 017

Set of 10 nozzle caps for trocar

Box dimensions: 8x12 cm
Gross weight: 0.01 kg
Quantity: 10

Booster kit dispensing assembly
(GL45 - Ø 3.2 mm)

Ref. 513 008

Set of silicone tubings inner Ø 3.2 mm + GL45 screw cap + tube weight + nozzle + cap + filter + "Y"

Box: 39x27x15 cm
Gross weight: 0.70 kg
Quantity: 1

G + J + I

Tubings + Y
(Ø 3.2 mm)

Ref. 513 009

Set of 5 dispensing tubings (silicone tubings + Tygon^TM tubings + "Y" connectors) - inner Ø 3.2 mm

Box dimensions: 35x45 cm
Gross weight: 0.47 kg
Quantity: 5

Tubings for pump (Ø 4.8 mm)

Ref. 513 011

Set of 6 Tygon^TM tubings for pump part (20 cm). inner Ø 4.8 mm

Box: 26x21x11 cm
Gross weight: 0.06 kg
Quantity: 6

G + H + J + L + M

Dispensing assembly for broth bags (Ø 4.8 mm)

Ref. 513 016

Set of silicone tubings inner Ø 4.8 mm (silicone tubings + Tygon^TM tubings + straight connectors) + nozzle + protection cap - Compatible with broth bags

Box dimensions: 20x20 cm
Gross weight: 0.12 kg
Quantity: 1

Trocar

Ref. 513 020

Stainless steel trocar + cap for broth bags

Box: 12x10x8 cm
Gross weight: 0.03 kg
Quantity: 1

PTFE filters 0.2 µm
(Ø 25 mm)

Ref. 513 023

Set of 5 autoclavable PTFE filters (0.2 µm) for GL45 bottle

Box: 12x10x8 cm
Gross weight: 0.02 kg
Quantity: 5

L + M

Nozzles
(tubings Ø 4.8 - 8 mm)

Ref. 513 024

Set of 5 PEEK nozzles + caps for tubings from 4.8 to 8 mm inner diameter

Box: 15x15x6 cm
Gross weight: 0.10 kg
Quantity: 5

Tube weights
(Ø 6 mm)

Ref. 513 039

Set of 5 PTFE tube weights - Ø 6 mm

Box: 8x12 cm
Gross weight: 0.30 kg
Quantity: 5

L + M

Nozzles (tubings Ø 1.6 - 3.2 mm)

Ref. 513 040

Set of 5 PEEK nozzles + caps for tubings from 1.6 to 3.2 mm inner diameter

Box: 8x12 cm
Gross weight: 0.07 kg
Quantity: 5

Booster kit dispensing assembly (GL45 - Ø 6.4 mm)

Ref. 513 041

Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + tube weight + nozzle + cap + filter + "Y"

Box dimensions: 23x35 cm
Gross weight: 0.24 kg
Quantity: 1

G + J + I

Tubings + Y
(Ø 6.4 mm)

Ref. 513 042

Set of 5 dispensing tubings (silicone tubings + Tygon^TM tubings + "Y" connectors) - inner Ø 6.4 mm

Box dimensions: 35x45 cm
Gross weight: 0.63 kg
Quantity: 5

Dispensing assembly
(GL45 - Ø 6.4 mm)

Ref. 513 043

Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + tube weight + nozzle + cap + filter

Box dimensions: 23x35 cm
Gross weight: 0.22 kg
Quantity: 1

G + J + H

Tubings
(Ø 6.4 mm)

Ref. 513 044

Set of 5 dispensing tubings (silicone tubings + Tygon^TM tubings + straight connectors) - inner Ø 6.4 mm

Box dimensions: 35x45 cm
Gross weight: 0.59 kg
Quantity: 5

Ensemble de distribution
(GL45 - Ø 3,2 mm)

Ref. 513 045

Jeu de tuyaux en silicone Ø interne 3,2 mm + bouchon GL45 + crépine + embout + capuchon + filtre

Dimensions de l’emballage : 23x35 cm
Poids brut : 0,20 kg
Quantité : 1

G + J + H

Tubings
(Ø 3.2 mm)

Ref. 513 047

Set of 5 dispensing tubings (silicone tubings + Tygon^TM tubings + straight connectors) - inner Ø 3.2 mm

Box dimensions: 35x45 cm
Gross weight: 0.45 kg
Quantity: 5

Cap
(Ø 1.6 - 3.2 mm)

Ref. 513 048

Set of 5 protections for nozzles (tubings Ø 1.6 - 3.2 mm) or trocar.

Box dimensions: 8x12 cm
Gross weight: 0.01 kg
Quantity: 10

Dispensing assembly with 0.2 µm filter (GL45 - Ø 6.4 mm)

Ref. 513 050

Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + filter + tube weight + nozzle + cap + 0.2 µm filter - Compatible with gravimetric dilutors range

Box dimensions: 22x36x10 cm
Gross weight: 0.25 kg
Quantity:1

Dispensing assembly + Y with 0.2 µm filter (GL45 - Ø 6.4 mm)

Ref. 513 051

Set of silicone tubings inner Ø 6.4 mm + GL45 screw cap + filter + tube weight + nozzle + cap + "Y" + 2 filters 0.2 µm - Compatible with gravimetric dilutors range

Box dimensions: 22x36x10 cm
Gross weight: 0.38 kg
Quantity:1
