HD automatic colony counter and inhibition zone reader
HD image quality
Ref. 438 000
Scan 4000
HD automatic colony counter and inhibition zone reader
HD image quality
Ref. 438 000

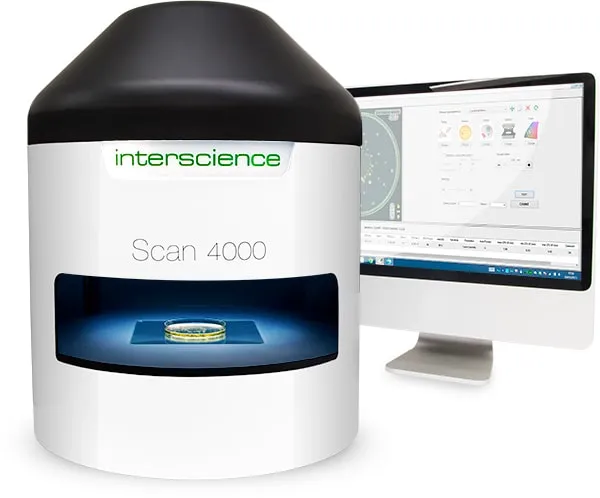

Scan 4000 is an automatic HD colour colony counter. It is adapted to all sizes of Petri dishes and any culture media. Its indirect lighting system gives great user comfort, high accuracy and excellent reproducibility. Scan 4000 is also an inhibition zone reader.
Minimum size of detected colony: 0.05 mm
Camera: 5 megapixels - zoom x 69
Counting on Ø 55 to 150 mm round Petri dishes and 120 mm square Petri dishes
Counting on pour, surface, Spiral, circle mode plated dishes
The Scan 4000 allows reading on Petri dishes of up to 150 mm diameter, and on square Petri dishes of 120 mm. This makes it the colony counter with the most possibilities on the market, for more flexibility in your work. Scan 4000 reads also inhibition zones on round or square Petri dishes.
The counting of Petri dishes is long, tedious and can vary from one person to another. The Scan 4000 can count up to 1000 colonies in 1 second in a constant and repeatable mode. Counting accuracy reach up to 98%. The minimum colony size is 0.05 mm.
Total flora before and after counting
Total count before/after counting
Accuracy and repeatability
The counting of Petri dishes is long, tedious and can vary from one person to another. The Scan 4000 can count up to 1000 colonies in 1 second in a constant and repeatable mode. Counting accuracy reach up to 98%. The minimum colony size is 0.05 mm.
Manual counting
Manual counting
Automatic counting
Automatic counting
21 CFR Part 11 included
The Scan software complies with FDA recommendations, particularly on audit trail and security of results.
The user account management, integrated in the software, allows the creation of up to 5 levels of rights. The Supervisor-Administrator has all the roles while the other roles are subject to certain rights. Password management secures user accounts.
Scan 4000 connects to the LIMS in bi-directionality and can be connected to the diluter and plater via dataLink traceability system.
Traceability export data - CSV
CSV
After each approved counting, the Scan 4000 automatically saves and exports the counting parameters and results to a CSV file.
SIL/LIMS Connection
SIL/LIMS connection
Traceability export data - 21 CFR Part 11
Audit trail
Traceability export data - Saving and archiving sessions
Backup and archive sessions
Traceability export data - PDF
PDF
Traceability export data - JPG
JPG, PNG, BMP
Traceability export data
ExcelTM OpenOfficeTM
Traceability export data - CSV
CSV
Scan 4000 offers multiple export possibilities to save manual input time. It also increases the security and quality of your analyses. Usually, Petri dishes are thrown away after counting and no further verification is possible in the event of a claim. With Scan 4000, all reports are archived.
Export your results to your PC or archive them in CSV, ExcelTM, OpenOfficeTM, PDF, SCA, BIO format. You can also export images from the camera in JPEG, PNG and BMP format.
Print of the results
All data, images, photos and results are exportable in printable reports, sca, pdf, jpg, xls, csv.

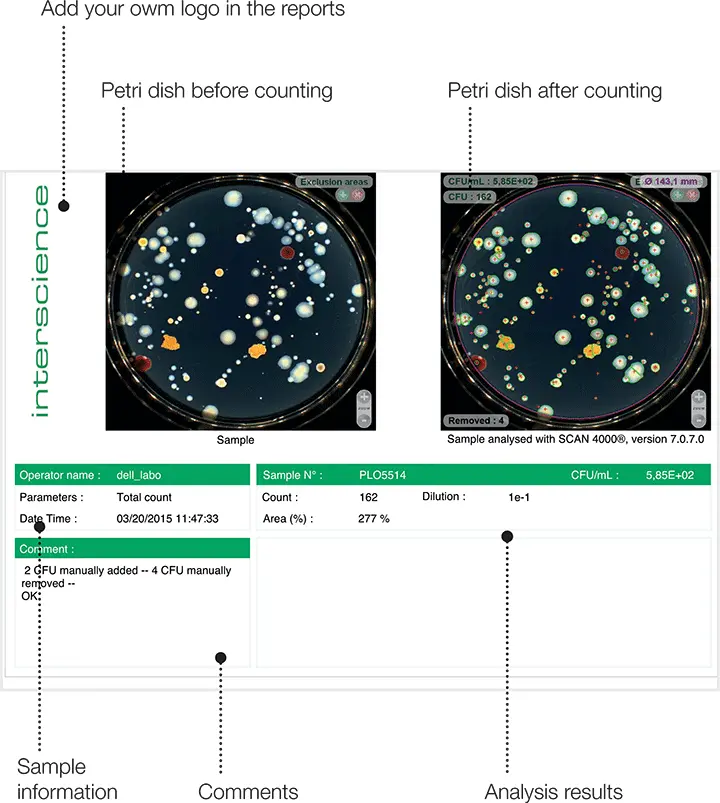

Scan rapport imprimé EN
Printed report example
White LED Dome lighting: reflection and shadow free
Petri dishes are difficult to lighten as they are transparent and reflective. Heterogeneous lighting creates artefacts on the edge of the agar and on the sides of the Petri dish. These artefacts may be counted as colonies and can ruin an accurate counting.
We have designed a white diffusing dome for 360° lighting without reflections or shadows. The lighting is spread evenly everywhere and allows you to count the colonies on the entire surface.
White LED Dome Lighting
Scan 4000 qualité de l’image EN
Scan 4000 Ultra high resolution camera
Ultra high resolution camera
Equipped with a German 5 megapixels camera and a Japanese lens, the Scan 4000 offers the best image quality of the INTERSCIENCE range. See details you would not see with your bare eye!
Reading on 100% of the surface of the Petri dish
Reading on 100% of the dish
Place the Petri dish where you want, the Scan 4000 automatically detects it and zooms on it. You can count on 100% of the surface of the Petri dish and avoid missing a colony nestled on the meniscus agar.
Reading on 100% of the dish
Reading on 100% of the surface of the Petri dish
Place the Petri dish where you want, the Scan 4000 automatically detects it and zooms on it. You can count on 100% of the surface of the Petri dish and avoid missing a colony nestled on the meniscus agar.
Traceability system with DataLink
Traceability ensured with dataLink
With dataLink, you can track the sample from plating to automatic colony counting.
Parameter the label that will be stuck on the edge of the dish. The colony counting is then optimised.
CA-SFM Human health / EUCAST / CA-SFM Veterinary / CLSI (Clinical, Laboratory Standards Institute) / Customizable list
SPECIFICATIONS
Color camera
Ultra HD CMOS
Lens
HD japanese lens
Zoom
x 69
Resolution (megapixels)
5
White LED Lighting technology
White LED Dome
LED Lighting system
Automatic with 7 combinations, top and/or bottom light, white or black background
Petri dish dimensions
Ø 55 mm to 150 mm round Petri dishes and 120 mm square Petri dishes
Color detection
7 colors on the same dish + 1 color to exclude
Voltage - Frequencies
100-240 V~ 50-60 Hz
Fuses
T3.15A L 250V 5x20 mm
Max. Power
140 W
International protection marking
IP00
Warranty
3-year (after recording the warranty card)
Spare parts availability
10 years
In compliance with
21 CFR Part 11, ISO 7218 and AOAC 977.27
Languages
English, French, Japanese, Chinese, Russian, Spanish, German
Software updates
3 years excluding qualification (after registration of warranty card)
TRACEABILITY
USB Data export
To LIMS, PDF report, jpg, png and bmp images, Excel™ recountable session
Data security
Modified data traceability in conformity with 21 CFR part 11
Results/traceability
Image / sample number / comments / date / time / antibiotic name / bacterial name / measured diameter / result categorized according to standards / minimum and maximum critical diameter
PC MINIMUM REQUIREMENTS
Operating sytem
WindowsTM 10 or 11 (or higher)
Processor
Intel i5, 2.8 GHz Quad-Core or higher
RAM
4 GB for use of the Scan
Equipments
USB port free
Screen
1280 X 1024 pixels or higher
WEIGHT AND DIMENSIONS
Dimensions (w x d x h): Scan
46.4 x 46.4 x 63.1 cm
Net weight: Scan
25.15 kg
Box (w x d x h)
80 x 60 x 63 cm
Gross weight: Scan
32.50 kg
DELIVERED WITH
1 Scan software, 1 15V power supply, 1 USB cable, 3 validation plates, 1 user manual, 1 conformity certificate / warranty card
CA-SFM Human health / EUCAST / CA-SFM Veterinary / CLSI (Clinical, Laboratory Standards Institute) / Customizable list
SPECIFICATIONS
Color camera
Ultra HD CMOS
Lens
HD japanese lens
Zoom
x 69
Resolution (megapixels)
5
White LED Lighting technology
White LED Dome
LED Lighting system
Automatic with 7 combinations, top and/or bottom light, white or black background
Petri dish dimensions
Ø 55 mm to 150 mm round Petri dishes and 120 mm square Petri dishes
Color detection
7 colors on the same dish + 1 color to exclude
Voltage - Frequencies
100-240 V~ 50-60 Hz
Fuses
T3.15A L 250V 5x20 mm
Max. Power
140 W
International protection marking
IP00
Warranty
3-year (after recording the warranty card)
Spare parts availability
10 years
In compliance with
21 CFR Part 11, ISO 7218 and AOAC 977.27
Languages
English, French, Japanese, Chinese, Russian, Spanish, German
Software updates
3 years excluding qualification (after registration of warranty card)
TRACEABILITY
USB Data export
To LIMS, PDF report, jpg, png and bmp images, Excel™ recountable session
Data security
Modified data traceability in conformity with 21 CFR part 11
Results/traceability
Image / sample number / comments / date / time / antibiotic name / bacterial name / measured diameter / result categorized according to standards / minimum and maximum critical diameter
PC MINIMUM REQUIREMENTS
Operating sytem
WindowsTM 10 or 11 (or higher)
Processor
Intel i5, 2.8 GHz Quad-Core or higher
RAM
4 GB for use of the Scan
Equipments
USB port free
Screen
1280 X 1024 pixels or higher
WEIGHT AND DIMENSIONS
Dimensions (w x d x h): Scan
46.4 x 46.4 x 63.1 cm
Net weight: Scan
25.15 kg
Box (w x d x h)
80 x 60 x 63 cm
Gross weight: Scan
32.50 kg
DELIVERED WITH
1 Scan software, 1 15V power supply, 1 USB cable, 3 validation plates, 1 user manual, 1 conformity certificate / warranty card
GLP-Compliant use (Good Laboratory Practice)
Products made for Interscience by Interlab, an ISO 9001 certified company.
