HD automatic colony counter and inhibition zone reader
High-performance
Ref. 437 000
Scan 1200
HD automatic colony counter and inhibition zone reader
High-performance
Ref. 437 000
Scan 1200 is an HD automatic colony counter. It adapts itself to all media and counts in 1 click all colonies even the smallest ones. It ensures accuracy and excellent reproducibility. Images and results are saved automatically. Scan 1200 is also an inhibition zone reader.
Minimum size of detected colony: 0.05 mm
Camera: 1.2 megapixels - zoom x 28
Counting on Ø 55 - 90 mm round Petri dishes
Counting on pour, surface, Spiral, circle mode plated Petri dishes
The Scan 1200 allows reading on Ø 55 - 90 mm Petri dishes and works with numerous media and supports. Scan 1200 reads also inhibition zones on round Petri dishes.
The counting of Petri dishes is long, tedious and can vary from one person to another.
Scan 1200 can count up to 1000 colonies in 1 second in a constant and repeatable mode. Counting accuracy reach up to 98%. The minimum colony size is 0.05 mm.
Total flora before and after counting
Before/after counting on total count
Accuracy and repeatability
The counting of Petri dishes is long, tedious and can vary from one person to another. Scan 1200 can count up to 1000 colonies in 1 second in a constant and repeatable mode. Counting accuracy reach up to 98%. The minimum colony size is 0.05 mm.

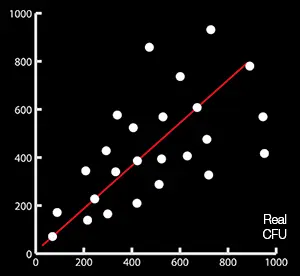

Manual counting
Manual counting
Automatic counting
Automatic counting
Data integrity
Scan receives and sends information from LIMS and/or dataLink and digitizes the counting. All the data from the analysis are traceable and auditable. The results are validated by a double electronic signature. Thanks to account management, you have multi-level access for the validation of results. This solution thus ensures the reliability and security of data in accordance with FDA guidelines, 21 CFR Part 11 and GMP (Good Manufacturing Practices) Annex 11.
Account management 21 CFR Scan software
Mueller Hinton disks before/after reading
Mueller Hinton disks before/after reading
Rapid reading of antibiograms
For precise clinical results and decision-making for the diagnosis and treatment of patients, the automated reading of antibiograms remains the most relevant solution.
•Up to 7 antibiotics in 1-3 seconds
•Measurement accuracy: ± 0.3 mm
•Integrated databases: CA-SFM, Eucast, CLSI
Traceability and printing of results
Scan 1200
connects to the LIMS in bi-directionality and can be connected to the diluter and plater via dataLink, a traceability system. It offers multiple export possibilities to save time on manual entry and thus increase the security and quality of your analyses.
Export your results to your PC or archive them in CSV, Excel™, OpenOffice™, PDF, SCA, BIO format. You can also export images from the camera in JPEG, PNG and BMP format.
LIMS Connexion
SIL/LIMS Connection
dataLink Connection
dataLink
CSV file
CSV
Recountable Scan session
Saving and archiving sessions
PDF file
PDF
jpg file
JPG, PNG, BMP
excel file
Excel™, OpenOffice™
Scan software customized report
Dark Field lighting technology
Thanks to the Dark Field technology and its low lighting, colonies are easy to count. The operator does not tire his eyes.
Lighting with Dark Field technology
Traceability system with DataLink
Traceability ensured with dataLink
With dataLink, you can track the sample from plating to automatic colony counting.
Parameter the label that will be stuck on the edge of the dish. The colony counting is then optimised.
Scan automatic colony counters have 3-YEAR warranty (parts and labour) just by sending the warranty card back.
3 year warranty
Applications
Scan 1200 is used for reading Petri dishes or various culture media such as filtration membranes for liquid samples and Petrifilm™ in Quality Control. Interpretation on chromogenic media is also available.
Automatic with manual control (adding/removing colonies)
Automatic separation of clustered colonies
N
Creation of polygonal exclusion zones
N
Counting time
Up to 1000 colonies per second
Minimal size of colony
0.05 mm
INHIBITION ZONE READING
Antibiotic disc detection
Automatic with possibility to manually add or remove
Automatic detection of antibiogram support
Disks (several brands simultaneously), wells
Display resolution
± 0.1 mm
Inhibition zone measurement accuracy
± 0.3 mm
Number of antibiotic paper disks
Up to 7 antibiotics on a Ø 90 mm Petri dish
Reading time
7 inhibition zone reading between 1 to 3 s
Interpretation system
CA-SFM Human health / EUCAST / CA-SFM Veterinary / CLSI (Clinical, Laboratory Standards Institute) / Customizable list
SPECIFICATIONS
Color camera
HD CCD
Lens
HD japanese lens
Zoom
x 28
Resolution (megapixels)
1.2
White LED Lighting technology
Dark Field
LED Lighting system
Automatic with 6 combinations, top and/or bottom light, white or black background
Petri dish dimensions
Ø 55 mm - Ø 90 mm
Color detection
4 colors on the same dish + 2 colors to exclude
Voltage - Frequencies
100-240 V~ 50-60 Hz
Fuses
T 3.15 A L 250 V 5x20 mm
Max. Power
20 W
International protection marking
IP00
Warranty
3-year (after recording the warranty)
Spare parts availability
10 years
In compliance with
21 CFR Part 11, ISO 7218 and AOAC 977.27
SOFTWARE
Languages
English, French, Japanese, Chinese, Russian, Spanish, German
License type
Perpetual
Software updates
3 years excluding qualification (after recording the warranty)
TRACEABILITY
USB Data export
Recountable session, Excel™, PDF report, jpg, png and bmp images
Data security
Modified data traceability in conformity with 21 CFR part 11
Results/traceability
Image / sample number / comments / date / time / antibiotic name / bacterial name / measured diameter / result categorized according to standards / minimum and maximum critical diameter
PC MINIMUM REQUIREMENTS
Operating sytem
Windows™ : 10 or 11 (or higher)
Processor
Intel i5, 13th or 14th generation minimum
RAM
4 GB for use of the Scan
Equipments
USB port free
Screen
1280 X 1024 pixels or higher
WEIGHT AND DIMENSIONS
Dimensions (w x d x h): Scan
28.8 x 26.3 x 37.3 cm
Net weight: Scan
9.40 kg
Box (w x d x h)
57 x 42 x 42 cm
Gross weight: Scan
13.10 kg
DELIVERED WITH
1 Scan software, 1 15V power supply, 1 power supply, 1 USB cable, 3 validation plates, 1 user manual, 1 conformity certificate / warranty card
Delivered with: 1 Scan software, 1 15 V power supply, 1 connection cable, 3 validation plates, 1 user's manual
Scan 1200
Reference
437 000
OVERVIEW
Painted stainless steel shell
N
LIMS/SIL connection
N
USB connection
N
Available with dataLink/dataLink pro traceability system
N
Counting on pour, surface, Spiral and circle plated Petri dishes
Automatic with manual control (adding/removing colonies)
Automatic separation of clustered colonies
N
Creation of polygonal exclusion zones
N
Counting time
Up to 1000 colonies per second
Minimal size of colony
0.05 mm
INHIBITION ZONE READING
Antibiotic disc detection
Automatic with possibility to manually add or remove
Automatic detection of antibiogram support
Disks (several brands simultaneously), wells
Display resolution
± 0.1 mm
Inhibition zone measurement accuracy
± 0.3 mm
Number of antibiotic paper disks
Up to 7 antibiotics on a Ø 90 mm Petri dish
Reading time
7 inhibition zone reading between 1 to 3 s
Interpretation system
CA-SFM Human health / EUCAST / CA-SFM Veterinary / CLSI (Clinical, Laboratory Standards Institute) / Customizable list
SPECIFICATIONS
Color camera
HD CCD
Lens
HD japanese lens
Zoom
x 28
Resolution (megapixels)
1.2
White LED Lighting technology
Dark Field
LED Lighting system
Automatic with 6 combinations, top and/or bottom light, white or black background
Petri dish dimensions
Ø 55 mm - Ø 90 mm
Color detection
4 colors on the same dish + 2 colors to exclude
Voltage - Frequencies
100-240 V~ 50-60 Hz
Fuses
T 3.15 A L 250 V 5x20 mm
Max. Power
20 W
International protection marking
IP00
Warranty
3-year (after recording the warranty)
Spare parts availability
10 years
In compliance with
21 CFR Part 11, ISO 7218 and AOAC 977.27
SOFTWARE
Languages
English, French, Japanese, Chinese, Russian, Spanish, German
License type
Perpetual
Software updates
3 years excluding qualification (after recording the warranty)
TRACEABILITY
USB Data export
Recountable session, Excel™, PDF report, jpg, png and bmp images
Data security
Modified data traceability in conformity with 21 CFR part 11
Results/traceability
Image / sample number / comments / date / time / antibiotic name / bacterial name / measured diameter / result categorized according to standards / minimum and maximum critical diameter
PC MINIMUM REQUIREMENTS
Operating sytem
Windows™ : 10 or 11 (or higher)
Processor
Intel i5, 13th or 14th generation minimum
RAM
4 GB for use of the Scan
Equipments
USB port free
Screen
1280 X 1024 pixels or higher
WEIGHT AND DIMENSIONS
Dimensions (w x d x h): Scan
28.8 x 26.3 x 37.3 cm
Net weight: Scan
9.40 kg
Box (w x d x h)
57 x 42 x 42 cm
Gross weight: Scan
13.10 kg
DELIVERED WITH
1 Scan software, 1 15V power supply, 1 power supply, 1 USB cable, 3 validation plates, 1 user manual, 1 conformity certificate / warranty card
GLP-Compliant use (Good Laboratory Practice)
Products made for Interscience by Interlab, an ISO 9001 certified company.
